Milwaukee 3974-20 Description
The MILWAUKEE 200’ Pipeline Inspection Reel designed for 3”-10” drain lines is powered by the M18 500 GB Control Hub and is part of the MILWAUKEE M18 Modular Pipeline Inspection System. Featuring the industry’s shortest 34 mm HDR self-leveling camera head, and the ability to digitally zoom up to 4X and optimize light output inside of pipes, technicians can now see more in drain lines than ever before. The HDR self-leveling camera heads allow you to see both up close and further down the line with superior clarity, reducing washed-out areas and highlighting detail in dark conditions. The pitch sensing feature reads and displays the pitch on screen for easier diagnosis and more effective reporting. The sewer line camera has a telescoping handle and wide wheelbase making transportation on and off the job easier than ever. The 200’ Pipeline Inspection Reel comes equipped with small and medium camera skids as well as a camera head sleeve to center and protect the camera while inside pipes.

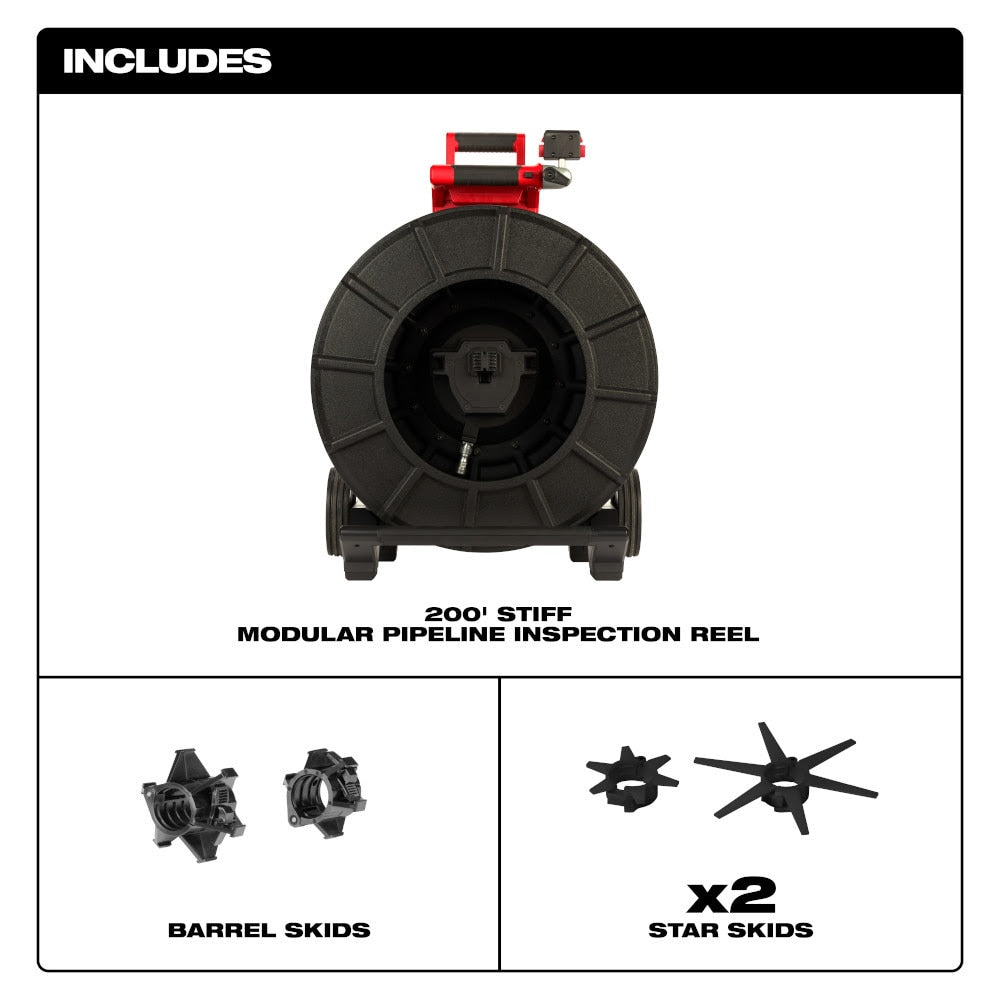

Milwaukee 3974-20 Includes
- (1) 200’ Stiff Pipeline Inspection Reel (3974-20)
- (1) Medium camera head skid for 34mm camera
- (1) Small camera head skid for 34mm camera
Milwaukee 3974-20 Features
- High resolution camera provides the industry's clearest image inside of drain lines

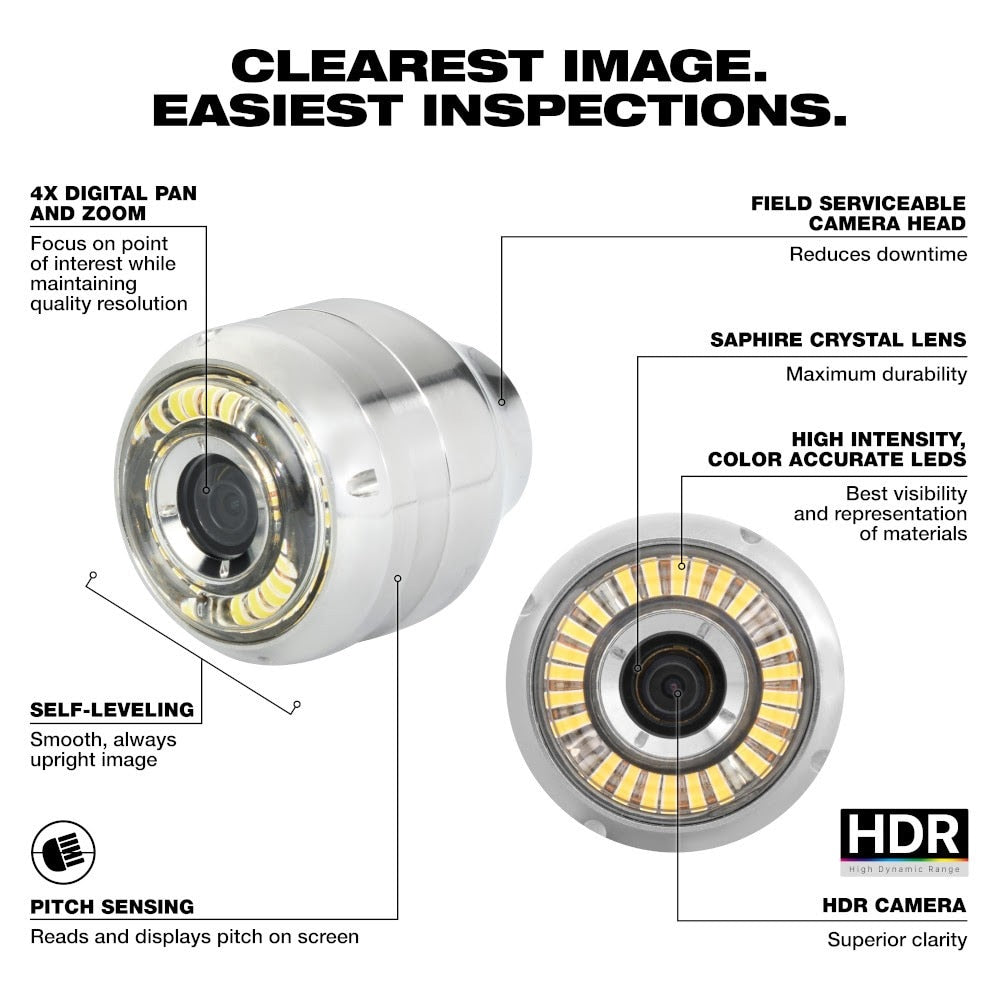

- 34 mm self-leveling HDR camera head with Sapphire Crystal lens
- Pitch sensing feature for easier diagnosis and more effective reporting
- 12 mm Push Cable Diameter provides stiffness to push maximum distance

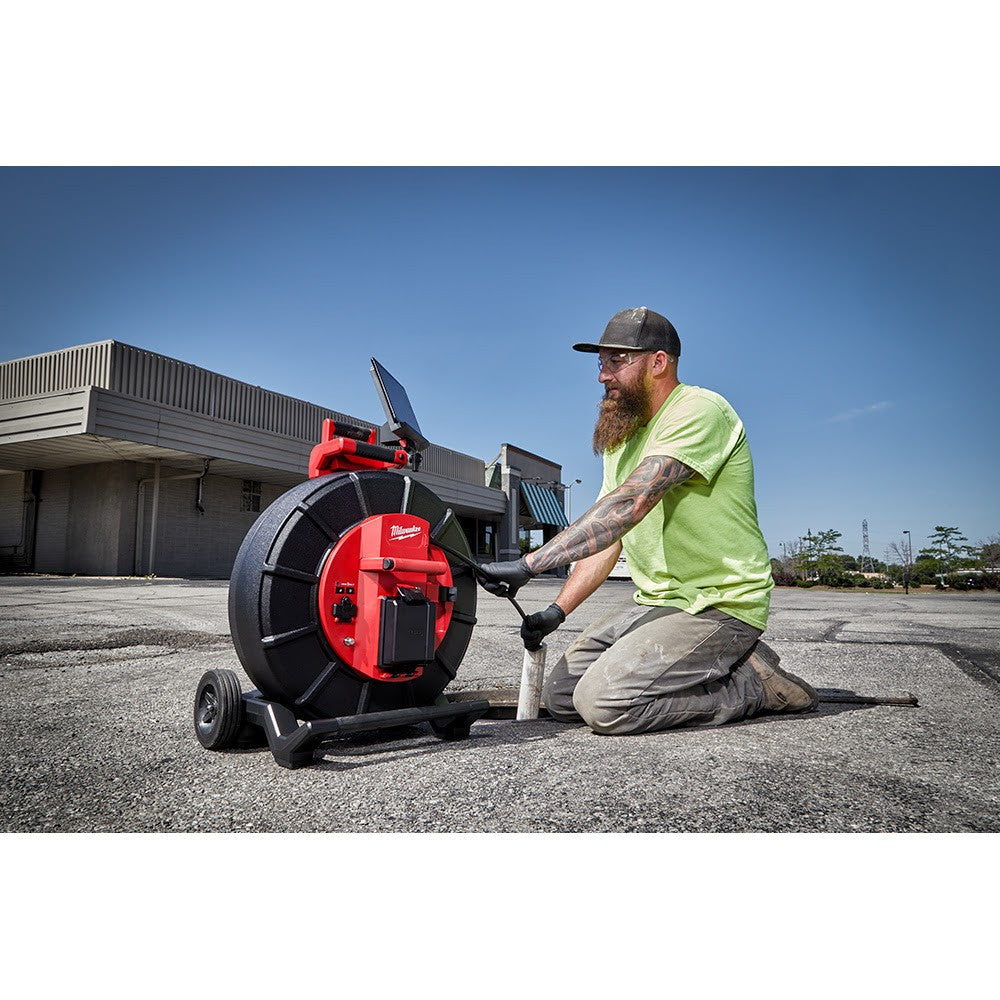

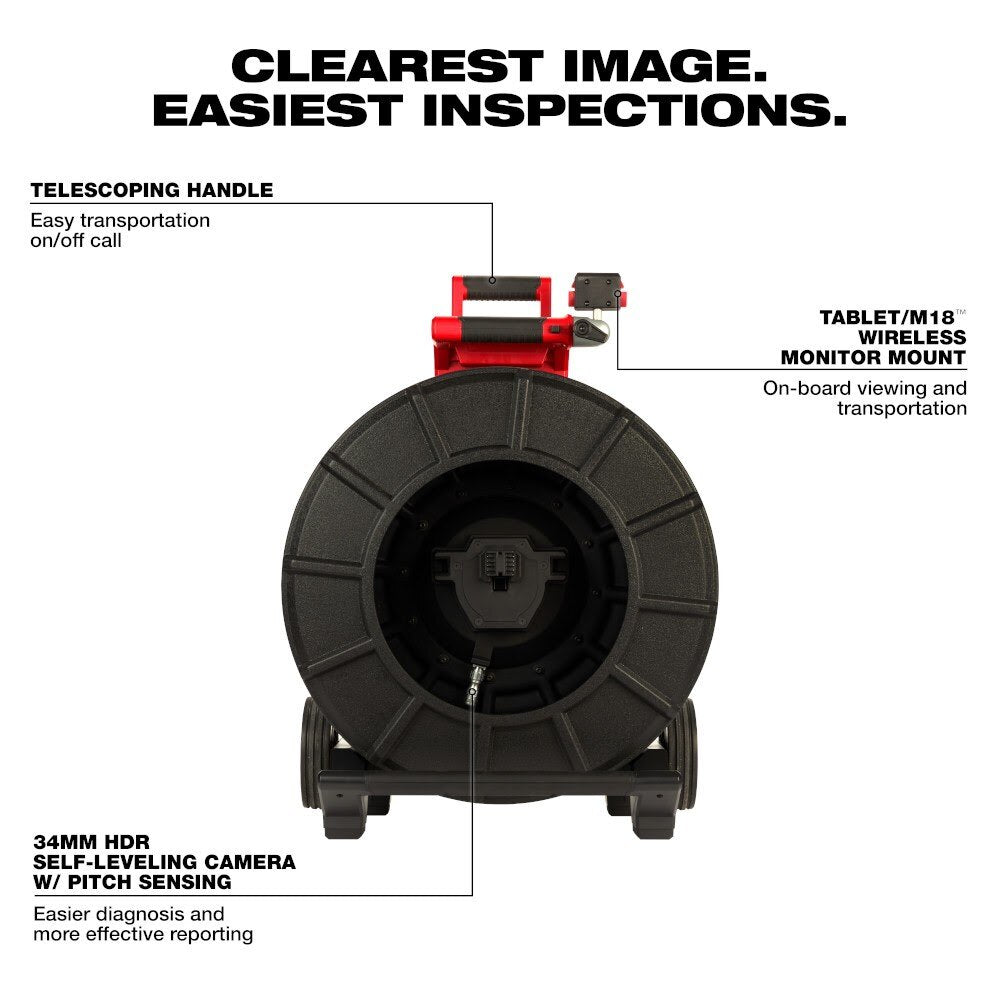

- Telescoping handle and wide wheelbase provide maximum stability
- Swap batteries without system shutdown

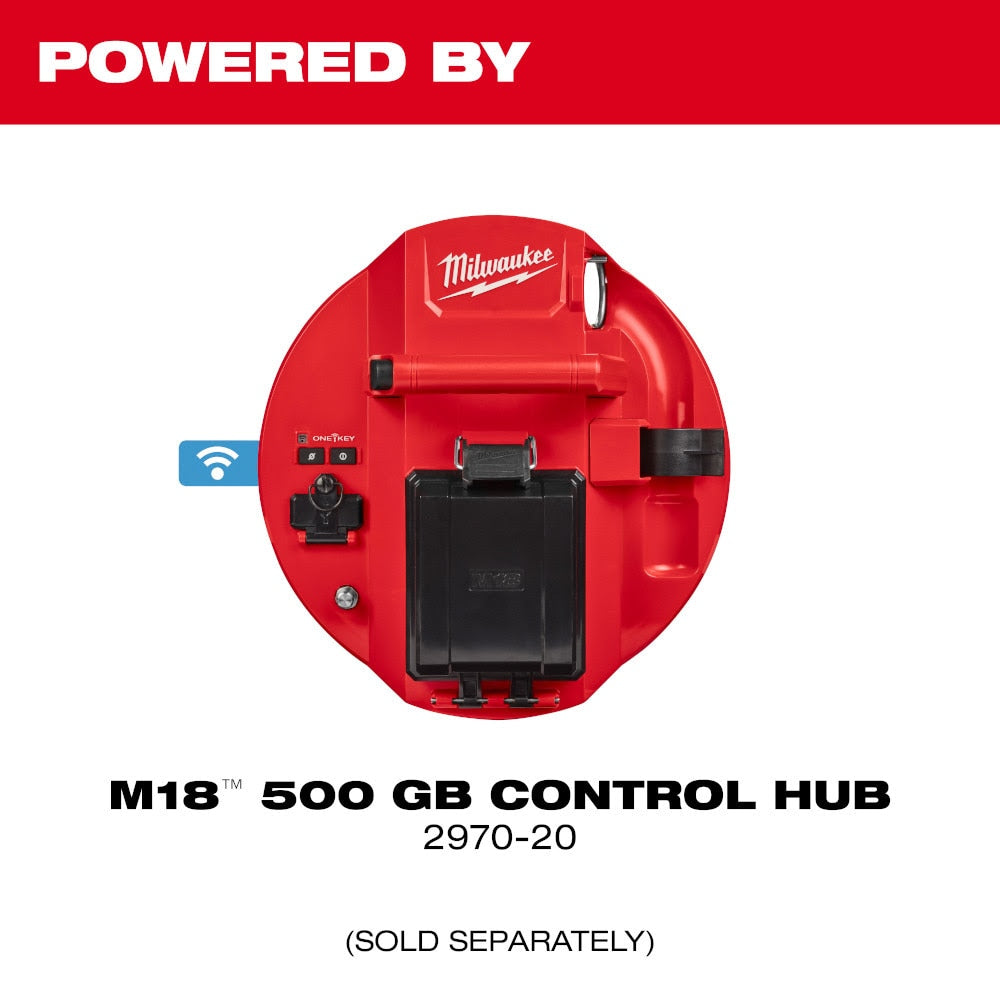

- Powered by the M18 500GB Control Hub
- On board monitor mount for viewing and transportation
Milwaukee 3974-20 Specifications
| Cable Length (ft): | 200 |
| Cable Diameter (in): | 15/32 |
| Camera Diameter (in): | 1.34 |
| Color / Finish: | Black, Red |
| Length (in): | 19 |
| Width (in): | 21.9 |
| Height (in): | 28.5 |
| Maximum Pipe / Tube Diameter (in): | 10 |
| Minimum Pipe / Tube Diameter (in): | 3 |
| Screen Image: | Color |
| Weight (lbs): | 35.6 |
| Manufacturer Warranty: | 5 Year |
